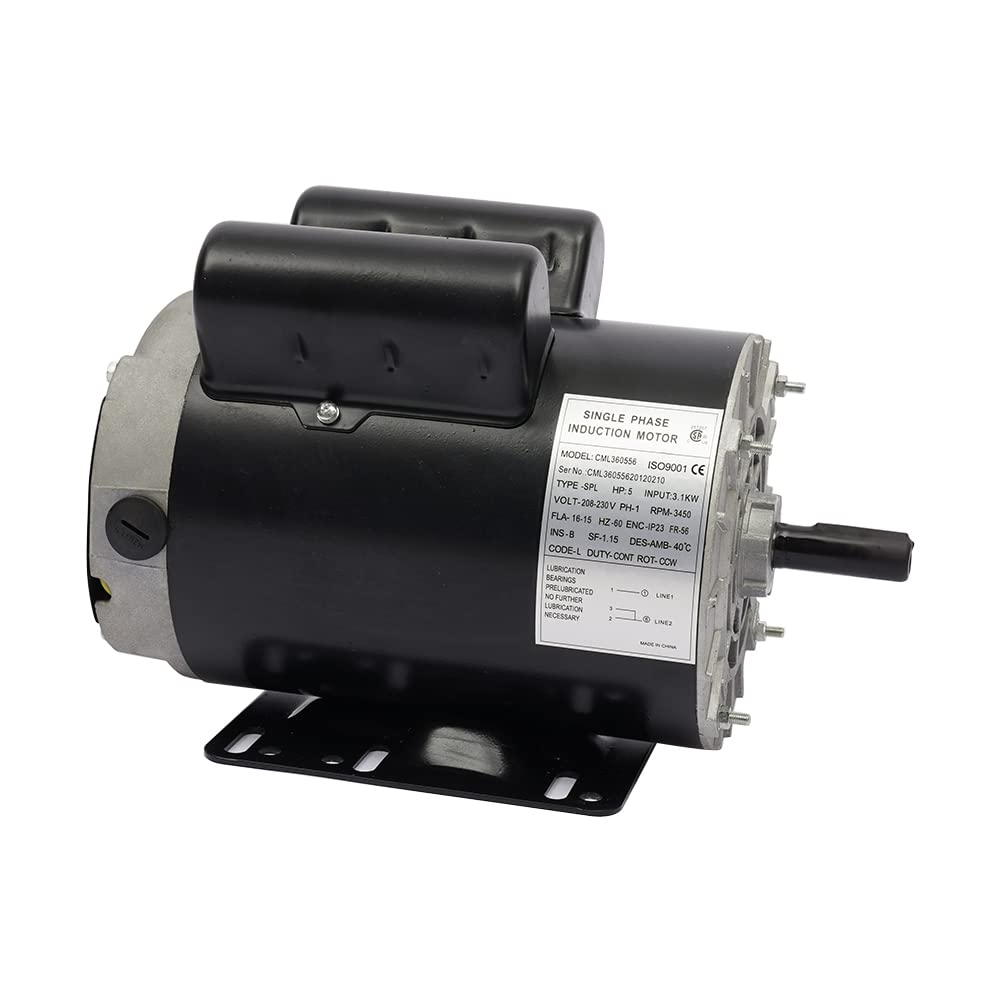

5HP SPL Air Compressor Motor 208-230V Single Phase Electric Motor - 3450 RPM, 56 Frame, 5/8" Keyed Shaft, CCW Rotation with Overload Protection - Ideal for Industrial Air Compressors, HVAC Systems, and Workshop Tools

Features

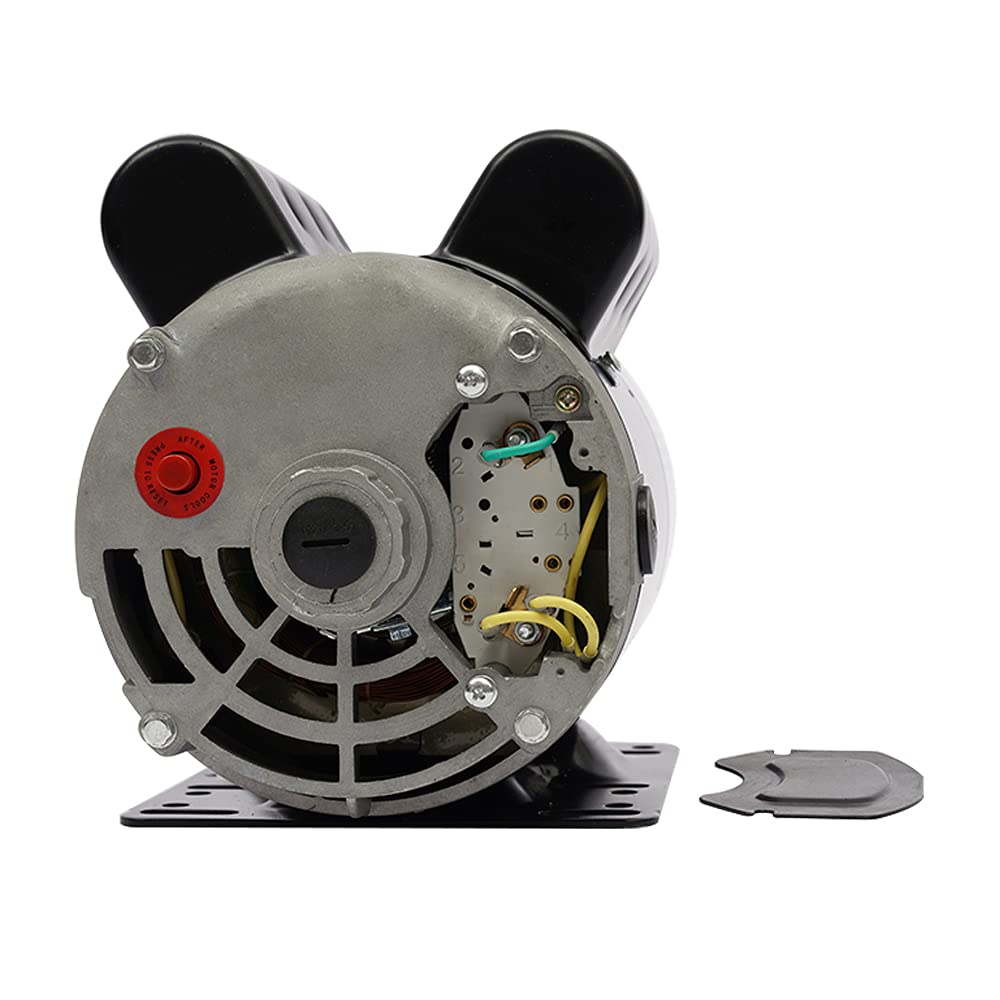

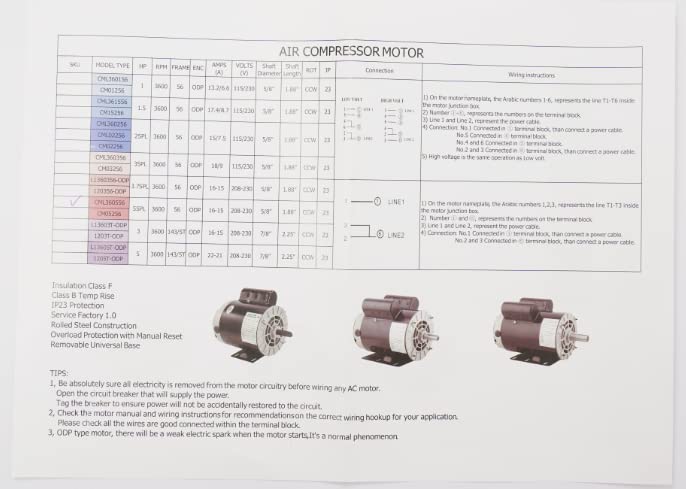

【AIR COMPRESSOR DUTY MOTOR】5HP single phase electric motor, special design for air compressor duty. Reduced starting amperage design to ensure the reduced voltage starting at rated load. Default settings are default low-voltage current. If the need to use high-voltage current, please replace the use of high voltage wiring.

【MANUAL RESET OVERLOAD PROTECTION】Open drip proof (ODP) enclosure is better used in environment that are relatively clean and dry environments. Non-reversible, counter clockwise (CCW) rotation facing shaft. Equipped with UL approved Manual thermal overload, capacitors and high quality ball bearings to ensure the lifetime.

【HIGH GRADE MATERIALS】The electric compressor motor is made of high-grade steel, compact structure and small size. Strong and durable materials can protect the motor well and protect the inner circuit from thermal overloading. It includes the stable mounting bracket.

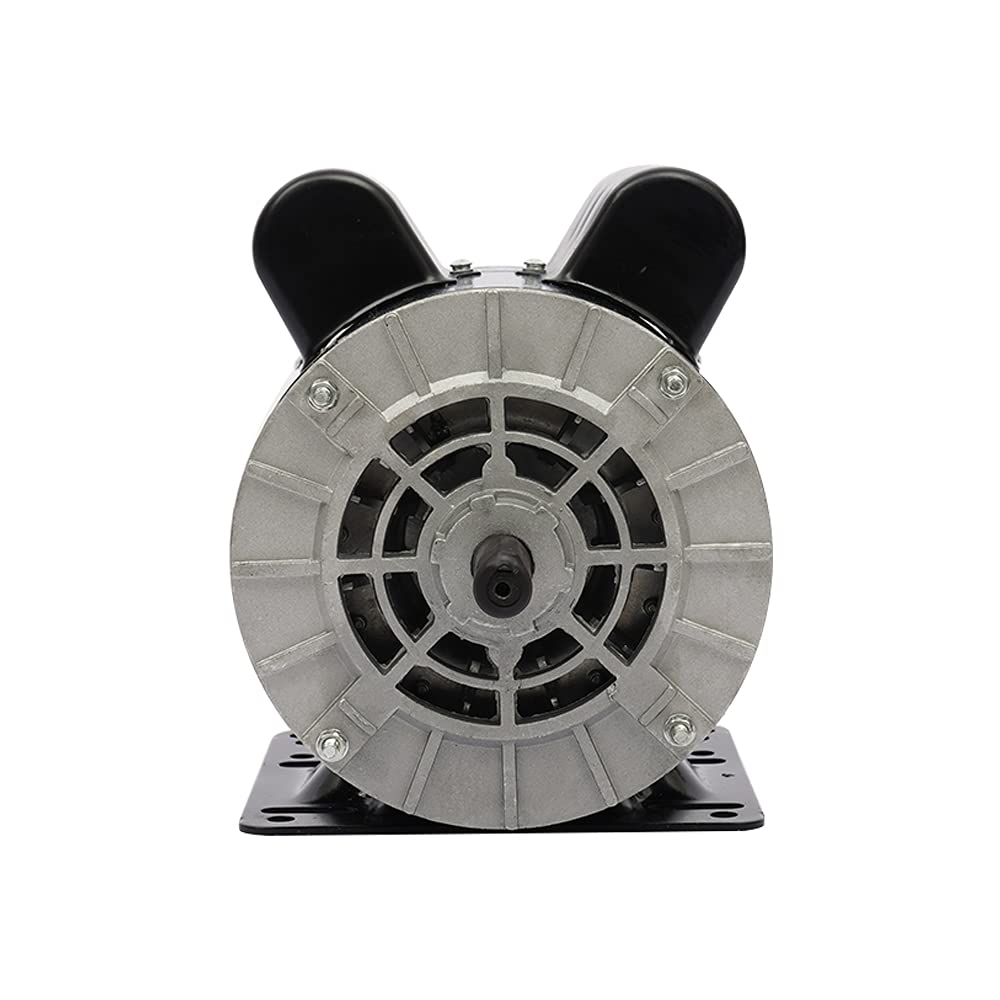

【HIGH WORKING EFFICIENCY】The air compressor electric motor can run at the maximum speed 3450 RPM, high working efficiency. The motor is featured with big fan at one end, which cools the motor in long-time running, even in damp and dusty environments, reduces energy costs, reduces running temperature, increases service lifetime.

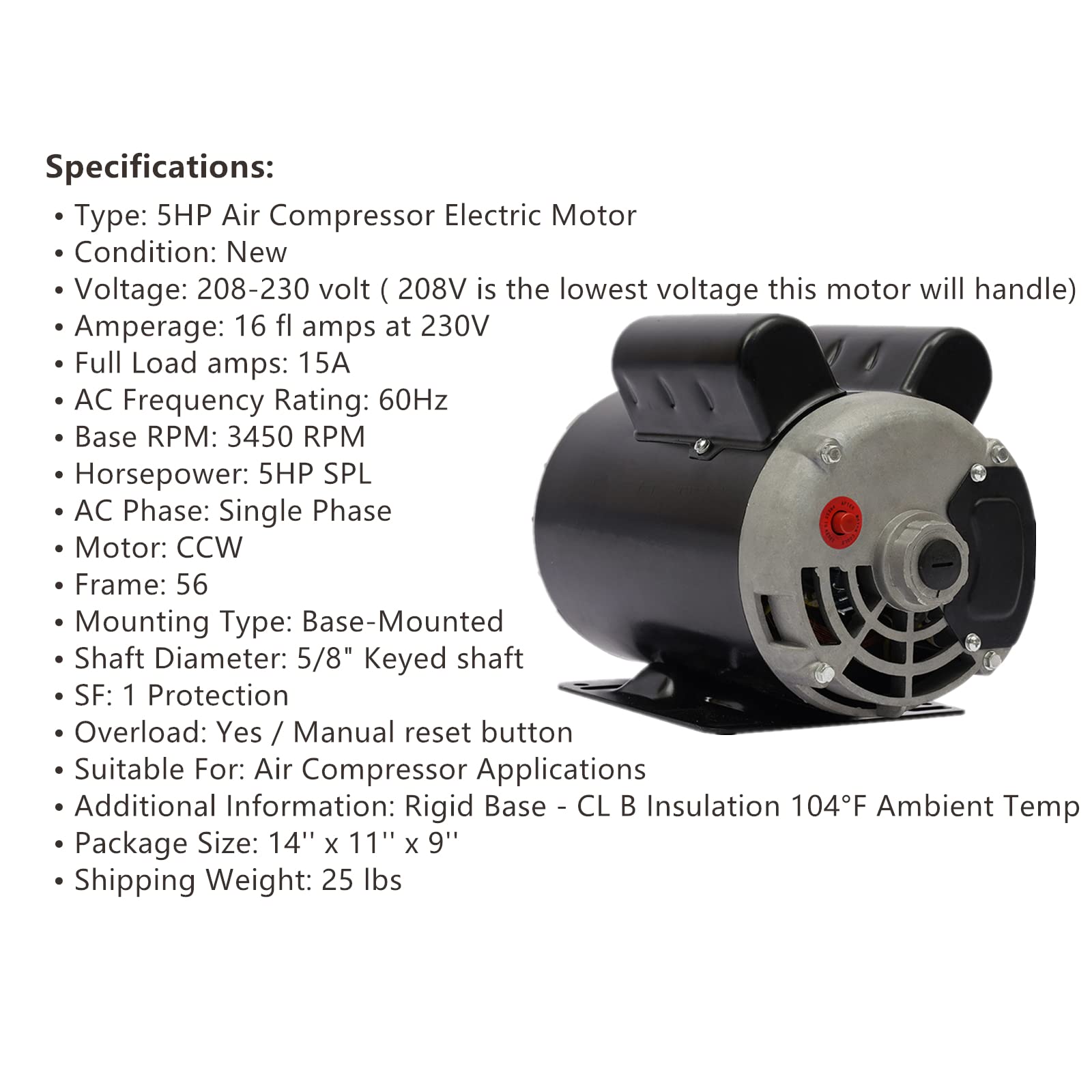

【TECHNICIAN PARAMETERS】Voltage 208-230V ( 208V is the lowest voltage this motor will handle); Amperage 16 fl amps at 230V; Full Load amps 15A; AC Frequency Rating 60Hz; Base RPM 3450 RPM; Horsepower 5HP SPL ; AC Phase Single Phase; Motor CCW; Frame 56; Mounting Type Base-Mounted; Shaft Diameter 5/8" Keyed shaft; SF 1 Protection; Overload Yes/Manual reset button; Package Size 14'' x 11'' x 9''; Shipping Weight 25 lbs.
