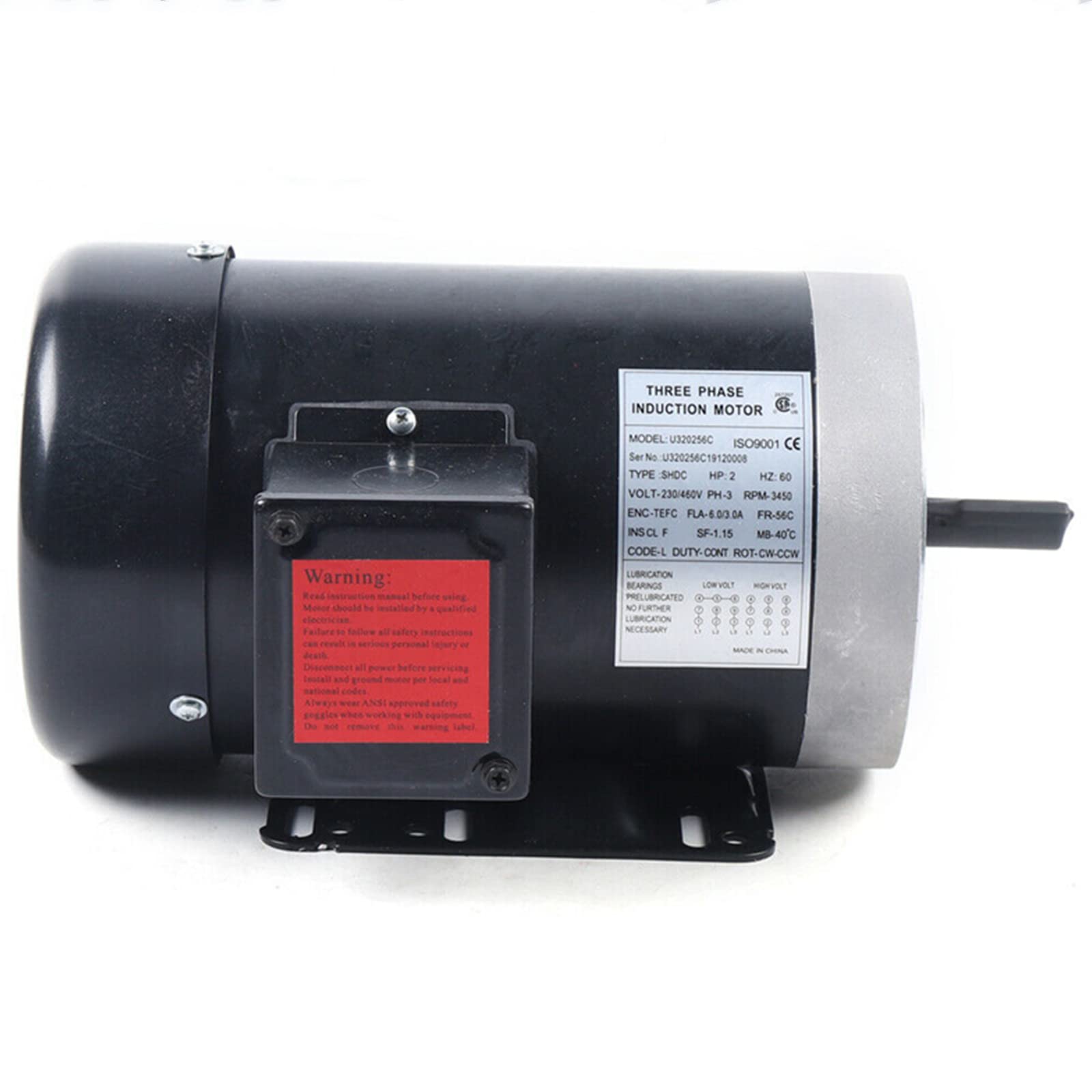

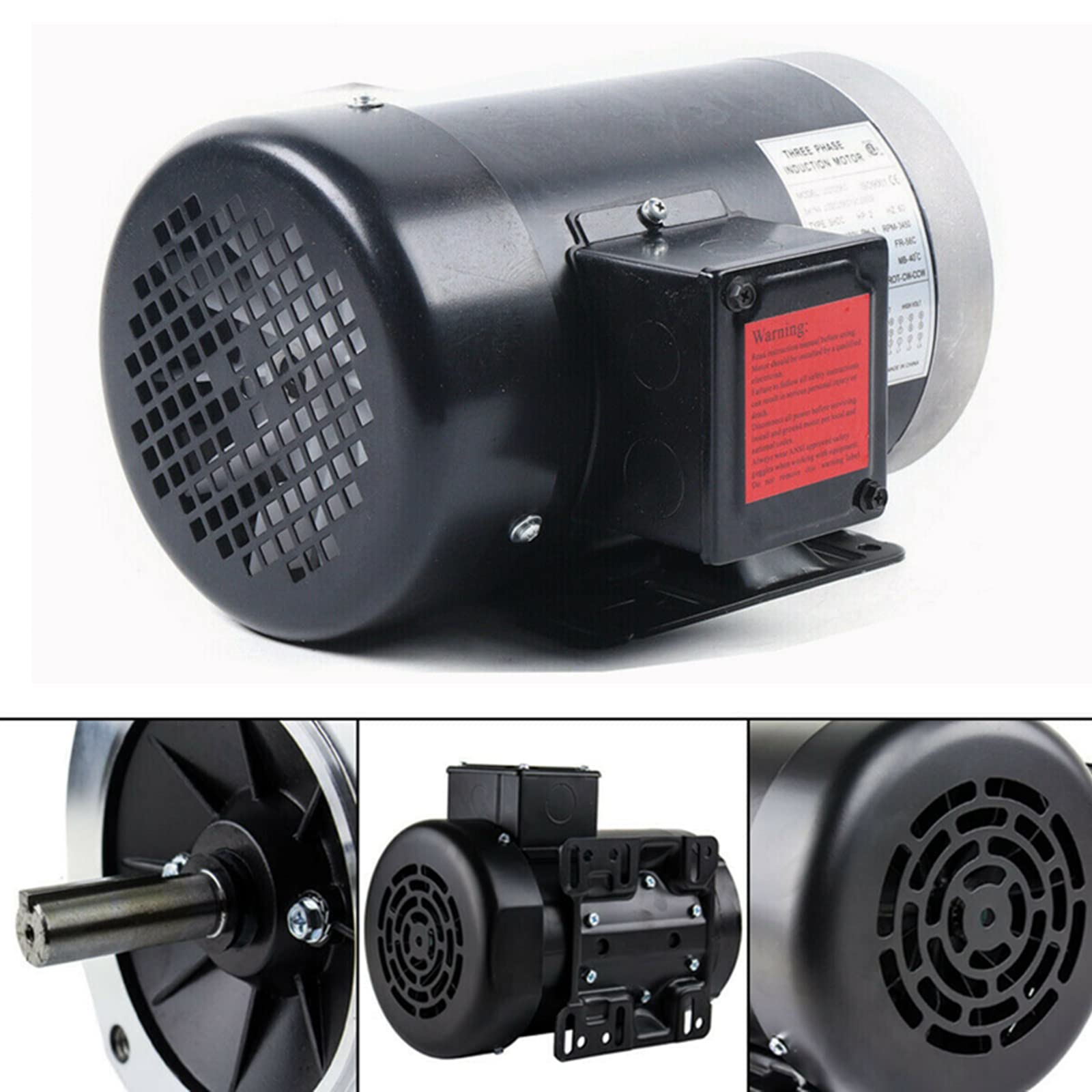

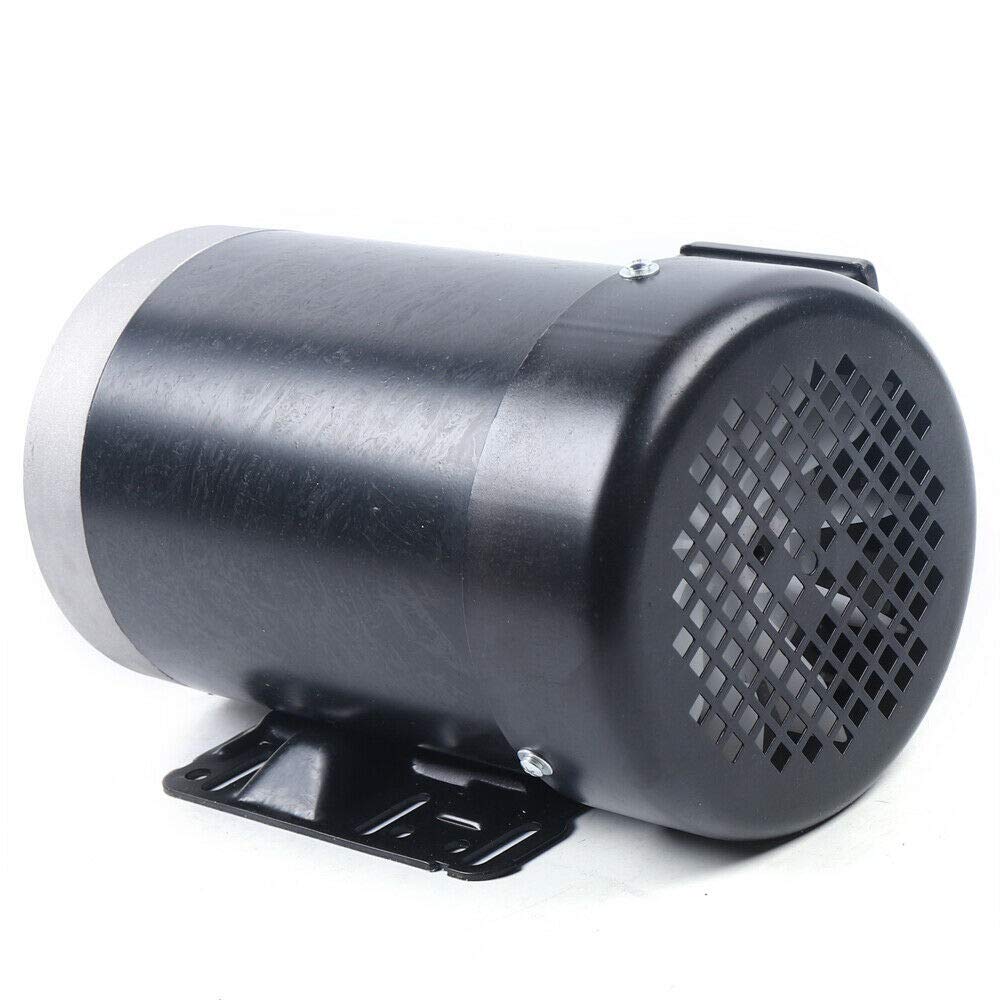

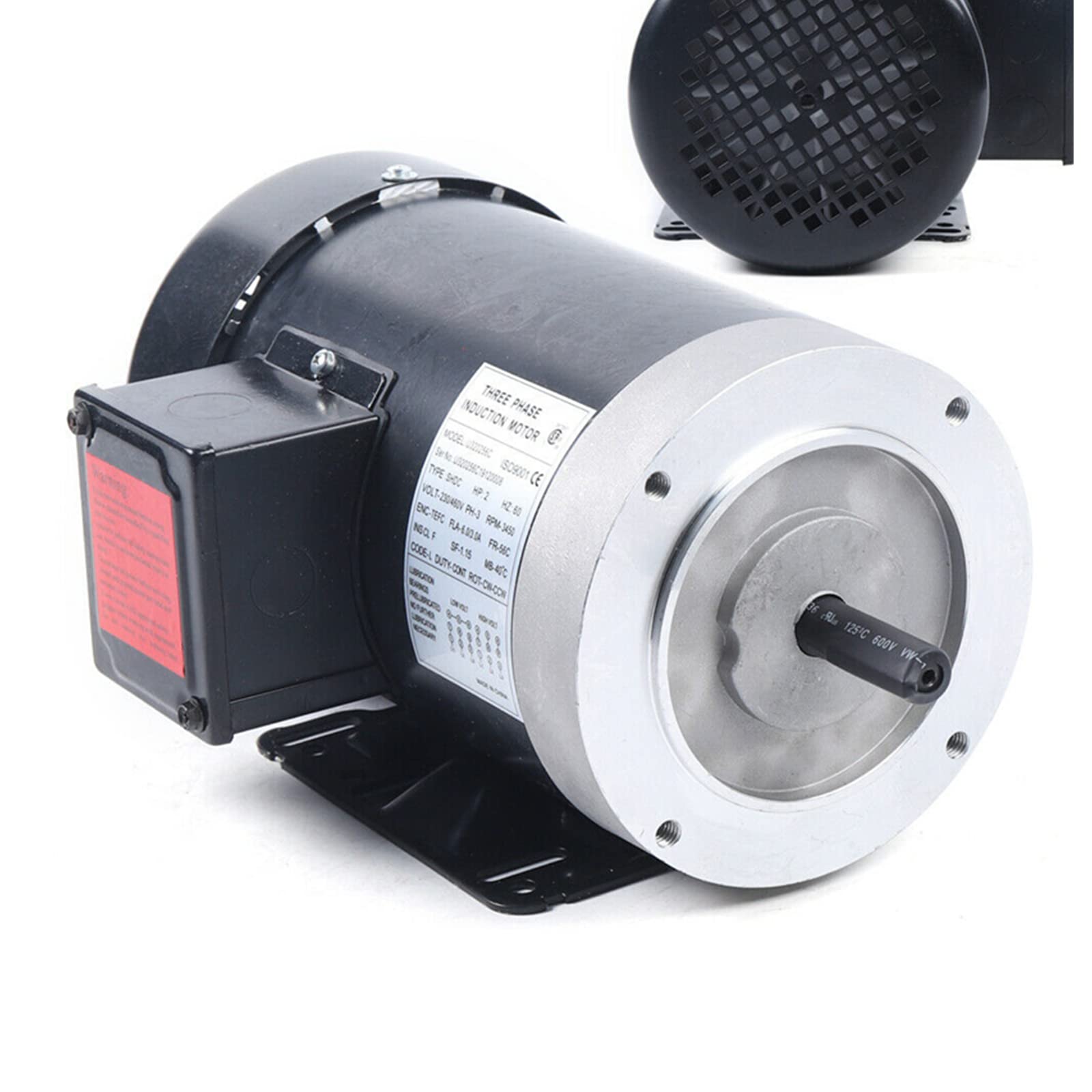

2HP 3 Phase Electric Motor 208V-230V/460V AC Motor, 56C Frame 3450 RPM TEFC 5/8" Shaft - Heavy Duty Air Compressor Motor for Oilfield, Agriculture & Industrial Applications
Free shipping on all orders over $50
7-15 days international
13 people viewing this product right now!
30-day free returns
Secure checkout
39750294
Description
Description: 3 Phase Electric Motor 2HP AC Air Compressor Motor 56C Frame 3450 RPM TEFC 208-230/460V 5/8" Shaft Air compressor motor is universal and suitable for air compressors, steel industry, construction industry, water pump industry, fan industry, household appliances, agricultural machinery and other fields. The electric motor is made of high-grade steel. Strong and durable materials can protect the motor well and protect the inner circuit from thermal overloading. It includes the stable mounting bracket. Compact structure and small size, the air compressor motor can run at the maximum speed 3450 RPM, high working efficiency; there are many heat dissipation holes, so that it has great heat dissipation performance. Our electric ac motor is featured with big fan at one end, which cools the motor in long-time running, even in damp and dusty environments, reduces energy costs, reduces running temperature, increases service lifetime.Specifications: Condition: New AC Frequency Rating: 60Hz Base RPM: 3450 RPM Horsepower: 2HP AC Phase: 3 Phase Frame: 56C Type: SHDC Current: AC Voltage: 208V-230V/460V Full Load Amps: 6.3A/3A Mounting Type: Base-Mounted (Removable Base) Enclosure Type: TEFC Shaft Length: 1.9" Shaft Diameter: 5/8" Application: Oilfield, agriculture and air compressor Additional Product information: Rigid Base - CL B Insulation 104°F Ambient Temp Package Size: 16'' x 13'' x 12'' Shipping Weight: 37 lbsPackage Includes: 1 x 3-Phase Electric Motor
Features
【HIGH GRADE MATERIALS】The electric motor is made of high-grade steel. Strong and durable materials can protect the motor well and protect the inner circuit from thermal overloading. It includes the stable mounting bracket.
【HIGH WORKING EFFICIENCY】Compact structure and small size, the air compressor motor can run at the maximum speed 3450 RPM, high working efficiency; there are many heat dissipation holes, so that it has great heat dissipation performance.
【BIG COOLING FAN】Our electric ac motor is featured with big fan at one end, which cools the motor in long-time running, even in damp and dusty environments, reduces energy costs, reduces running temperature, increases service lifetime.
【WIDE APPLICATION】The air compressor electric motor is universal and suitable for air compressors, steel industry, construction industry, water pump industry, fan industry, household appliances, agricultural machinery and other fields.

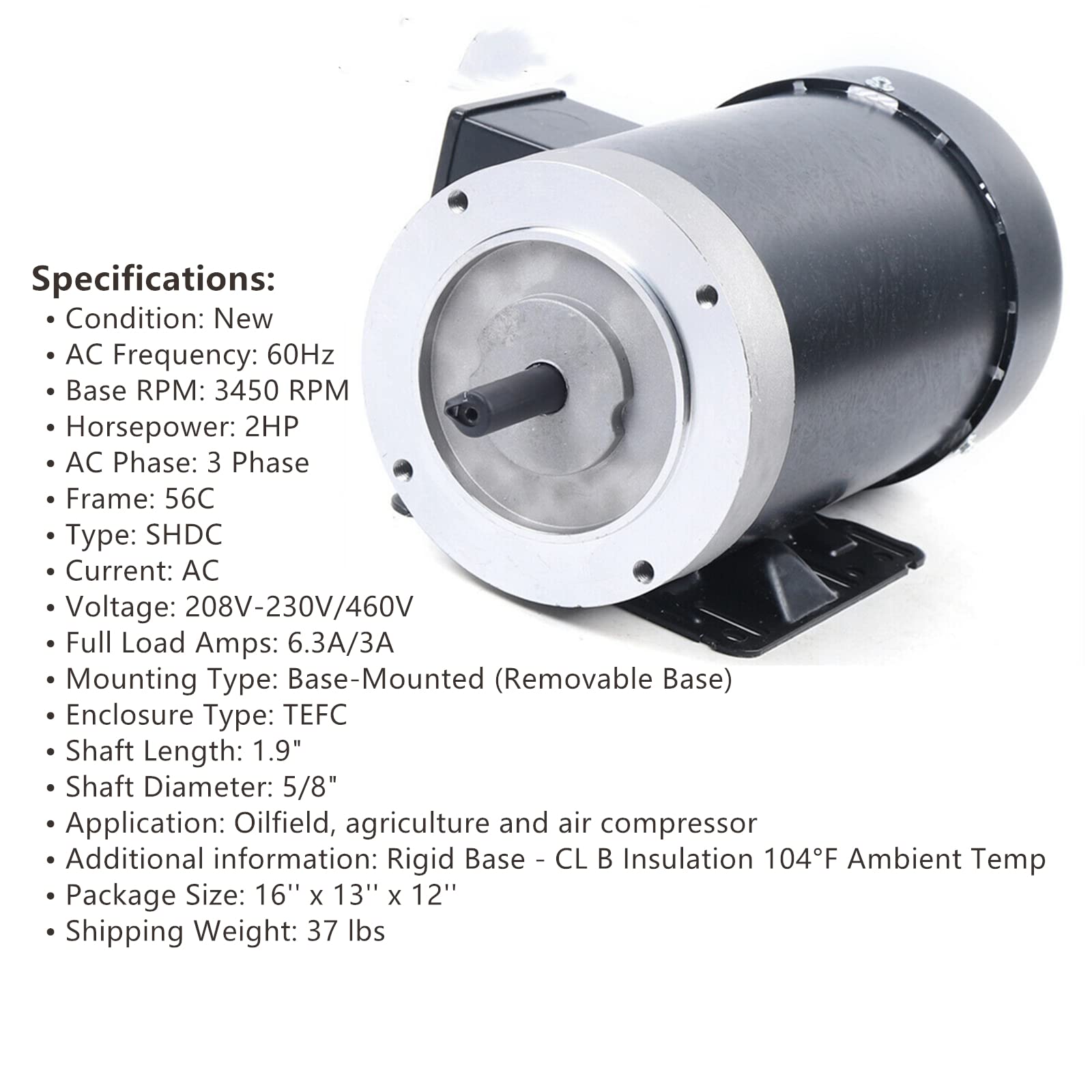

【TECHNICIAN PARAMETERS】AC Frequency Rating 60Hz; Base RPM 3450 RPM; Horsepower 2HP; AC Phase 3 Phase; Frame 56C; Type SHDC; Current AC; Voltage 208-230/460 Volts; Full Load Amps 6.3A/3A; Mounting Type Base-Mounted (Removable Base); Enclosure Type TEFC; Shaft Length 1.9"; Shaft Diameter 5/8"; Application Oilfield, agriculture and air compressor; Package Size 16'' x 13'' x 12''; Shipping Weight 37 lbs.
